19-2A: DESIGN FOR DRY SINGLE-WYTHE CONCRETE MASONRY WALLS
Keywords:
architectural, capillary suction, coatings, construction details, flashing, moisture, single-wythe, tooling mortar joints, wall drainage, water resistance, water repellents, weep holes
INTRODUCTION
Single-wythe concrete masonry construction has become a predominant method of construction with the increased use of integrally colored architectural concrete masonry units. Single-wythe walls are cost competitive with other systems because they provide structural form as well as an attractive architectural facade. However, single-wythe concrete masonry walls, as opposed to cavity and veneered walls, require special attention regarding moisture penetration issues.
The major objective in designing dry concrete masonry walls is to keep water from entering or penetrating the wall. In addition to precipitation, moisture can find its way into masonry walls from a number of different sources. Dry concrete masonry walls are obtained when the design and construction addresses the movement of water into, through, and out of the wall. This includes detailing and protecting roofs, windows, joints, and other features to ensure water does not penetrate the wall.
SOURCE OF WATER IN WALLS
The following moisture sources need to be considered in the design for dry concrete masonry walls.
Driving Rain
Moisture in liquid form can pass through concrete masonry units and mortar when driven by a significant force. However, these materials generally are too dense for water to pass through quickly. If water enters the wall, it often can be traced to the masonry unit-mortar interface due to improperly filled joints or lack of bond between the unit and the mortar. Cracks caused by building movements, or gaps between adjoining building segments (roofs, floors, windows, doors, etc.) and masonry walls are other common points of water entry.
Capillary Suction
Untreated masonry materials typically take on water through capillary forces. The amount of water depends on the capillary suction characteristics of the masonry and mortar. Integral water repellents greatly reduce the absorption characteristics of the units and mortar, but may not be able to prevent all moisture migration if there is a significant head pressure – 2 in. (51 mm) or more. Post-applied surface treatments reduce the capillary suction of masonry at the treated surface as well but have little effect on the interior of the units. This is discussed in more detail later.
Water Vapor

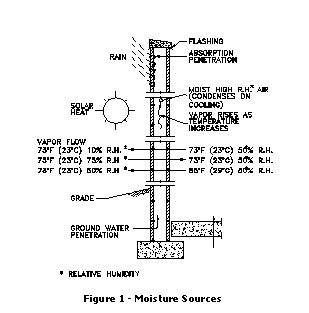

Water as vapor diffuses toward a lower vapor pressure. This means it will move from the higher toward the lower relative humidity regions assuming no pressure or temperature differential. Vapor in air of the same humidity and pressure, but of different temperatures, will move from the higher temperature to the lower. As air is cooled, it becomes more saturated and when it reaches a temperature called the dew point, the water vapor will condense into liquid form. See Figure 1.
DESIGN CONSIDERATIONS
Physical Characteristics of the Units
Open textured concrete masonry units possessing large voids (a function of density, compaction, and gradation) tend to be more permeable than closed textured units. The type of aggregate and water content used in the production of the masonry unit also affect capillary suction and vapor diffusion characteristics. Units that lend to mortar joint tooling such as standard units and scored block will form a more watertight wall than split-face units which are a little more difficult to tool. Fluted units are the most difficult to tool and therefore, the most susceptible to leakage. Horizontal effects such as corbels and ledges that hold water are also prone to be less water resistant. Units should be aged at least 21 days if possible before installation to reduce the chance of shrinkage cracks at the mortar-unit interface.
Integral Water Repellents
The use of integral water repellents in the manufacture of concrete masonry units can greatly reduce the absorption characteristics of the wall. When using integral water repellents in the units, the same manufacturer's water repellent for mortar must be incorporated in the field for compatibility and similar reduced water capillary suction characteristics.
Integral water repellents make masonry materials hydrophobic, thereby significantly decreasing their water absorption and wicking characteristics. While these admixtures can limit the amount of water that can pass through units and mortar, they have little impact on moisture entering through relatively large cracks and voids in the wall. Therefore, even with the incorporation of integral water repellents, proper detailing of control joints and quality workmanship to preclude beeholes and unfilled or inadequate mortar joints is still essential. Another advantage of integral water repellents is that they not only help to keep water out but also inhibit the migration of water to the interior face of the wall by capillary suction. See TEK 19-1 (ref. 7) for more complete information on integral water repellents for concrete masonry walls.
Surface Treatments
For colored architectural masonry it is recommended that a clear surface treatment be post-applied whether or not integral water repellent admixtures are used. Most post-applied coatings and surface treatments are compatible with integral water repellents although this should be verified with the product manufacturers before applying. When using standard units for single-wythe walls, an application of portland cement plaster (stucco), paint, or opaque elastomeric coatings works well. Coatings containing elastomerics have the advantage of being able to bridge small gaps and cracks. More detailed information on surface treatments and water repellents is available in TEK 19-1 (ref. 7).
Wall Drainage
Proper detailing of masonry wall systems, to ensure good performance, can not be over emphasized. Traditionally, through-wall flashing has been used to direct water away from the inside face of the wall and toward weep holes for drainage. Modern techniques usually do not extend the flashing through the inside faceshell of the wall, as shown in Figure 2, in order to retain some shear and flexural resistance capabilities. In reinforced walls, some shear is provided through doweling action of the reinforcement and by design the reinforcement takes all the tension per the Building Code Requirements for Masonry Structures (ref. 1). Proper grouting effectively seals the vertical reinforcement penetrations of the flashing. The absence of reinforcement to provide doweling in plain masonry may be more of a concern, but loads tend to be relatively low in these applications. If structural adequacy is in doubt, a short reinforcing bar through the flashing with cells grouted directly above and below the flashing can be provided as shown in Figure 2C.
A critical aspect of flashing is to insure that a buildup of mortar droppings does not clog the cells or weep holes. A cavity filter consisting of washed pea stone or filter paper, immediately above the flashing, can be provided to facilitate drainage as shown in Figure 2. This should be accompanied by a means of intercepting or dispersing mortar droppings as an accumulation can be sufficient to completely fill and block a cell at the bottom. Mortar nets at regular intervals or filling the cells with loose fill insulation, a few courses at a time as the wall is laid up, are effective in dispersing the droppings enough to prevent clogging. An alternative is to leave out facing block at regular intervals just above the flashing until the wall is built to serve as cleanouts. The units left out can be mortared in later. See TEK 19-4A and TEK 19-5A (refs. 4 and 6) for an in-depth discussion and additional details regarding flashing.
In addition to conventional flashing systems, proprietary flashing systems are available that direct the water away from the inside face of the wall to weep holes without compromising the bond at mortar joints in the faceshells. Specialty units that facilitate drainage are also available from some manufacturers. Solid grouted single-wythe walls, as are sometimes required, are not as susceptible to moisture penetration since voids and cavities where moisture can collect are absent. However, fully cured units and adequate crack control measures are especially important to minimize cracks. Some regions of the country recess the bottom of the wall about an inch below the floor level to ensure drainage to the exterior. Veneer and cavity walls (sometimes referred to as drainage walls) of course provide the most moisture resistance.
Control Joints and Horizontal Reinforcement
To alleviate cracking due to thermal and shrinkage movements of the building, control joints and/or horizontal reinforcement should be located and detailed on the plans. Wall cracking provides an entry point for rainwater and moist air that may condense on the inside of the wall. Specification of a quality sealant for the control joints and proper installation is a must. TEK 10-1A and TEK 10-2B (refs. 2 and 3) provide additional information on crack control strategies.
Mortar and Mortar Joints

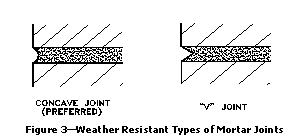

The type of mortar and mortar joint also have a great impact on the watertightness of a wall. A good rule of thumb is to select the lowest strength mortar required for structural and durability considerations. Lower strength mortars exhibit better workability and can yield a better weather resistant seal at the mortar/unit interface. Concave or V-shaped tooling of joints, when the mortar is thumbprint hard, improves rain resistance by directing water away from the surface of the wall and by compacting the mortar against the masonry unit to seal the joint. This is especially important when using integral water repellent admixtures to avoid reduced bond strength and cracking at the head joints due to the decreased affinity of the units for water. Raked, flush, struck, beaded, or extruded joints are not recommended as they do not compact the mortar and/or create ledges that intercept water running down the face of the wall. Head and bed joints need to be the full thickness of the faceshells for optimum watertightness. Head joints particularly are vulnerable to inadequate thickness (see Figure 4).
Vapor Barriers
Continuous vapor barriers to reduce the passage of water vapor into the wall generally are used only when insulation is placed on the inside face of the wall. The relatively small amount of moisture that does get through passes through the wall by diffusion, provided that a “breathable” surface treatment is placed on the exterior. Wall thickness and dew points are also determining factors regarding vapor barriers. Materials most commonly used for vapor barriers are plastic film, asphalt-treated paper, and aluminum foil.
Cleaning
Walls incorporating integral water repellents should not be cleaned with a high-pressure wash as it drives water into the masonry. Acidic washes should not be used since they may reduce the water repelling properties of treated masonry. Keeping the masonry wall clean, as the construction progresses, using a brush and water minimizes cleaning efforts after the mortar has hardened. Consult the integral water repellent manufacturer for detailed cleaning recommendations.
SPECIFICATIONS
Well-worded specifications are essential to ensure proper construction of the design details. Items to address in addition to those previously mentioned in the contract documents are:
Specify in the contract documents that all work be in accordance with the Specification for Masonry Structures (ref. 5).
Require a qualified mason by documentation of experience with similar type projects.
Require mock-up panels to assure an understanding of the level of workmanship expected and to be referred to as a standard of reference until the project is completed.
Proper storage of all masonry materials (including sand) at the job site to protect from contaminants such as dirt, rain, and snow.
The tops of unfinished walls shall be covered at the end of each working day. The cover should extend two feet down both sides of the masonry and should be held securely in place.
REFERENCES
1. Building Code Requirements for Masonry Structures, ACI 530-99/ASCE 5-99/TMS 402-99, reported by the Masonry Standards Joint Committee, 1999.
2. Concrete Masonry Handbook, Fifth Edition, Portland Cement Association, 1991.
3. Control Joints for Concrete Masonry Walls - Empirical Method, TEK 10-2B, National Concrete Masonry Association, 2001.
4. Crack Control in Concrete Masonry Walls, TEK 10-1A, National Concrete Masonry Association, 2001.
5. Flashing Strategies for Concrete Masonry Walls, TEK 19-4A, National Concrete Masonry Association, 2001.
6. Specification for Masonry Structures, ACI 530.1-99/ASCE 6-99/TMS 602-99, reported by the Masonry Standards Joint Committee, 1999.
7. Flashing Details for Concrete Masonry Walls, TEK 19-5A, National Concrete Masonry Association, 2000.
8. Water Repellents for Concrete Masonry Walls, TEK 19-1, National Concrete Masonry Association, 1995.
